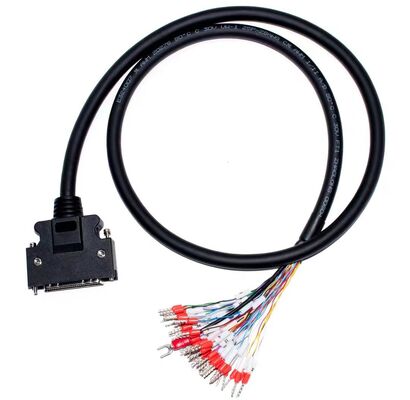

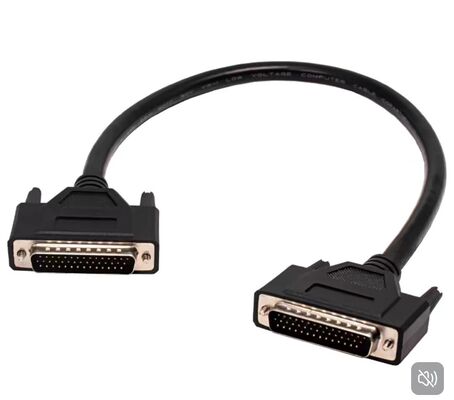

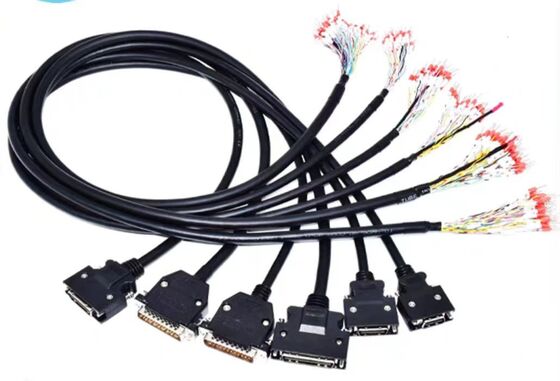

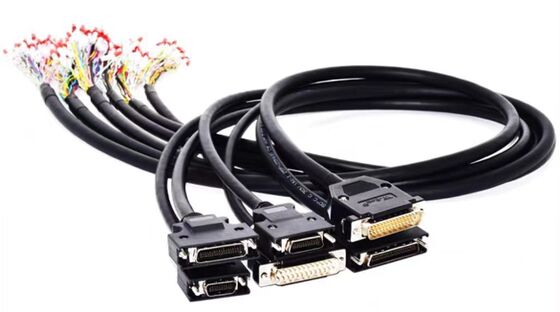

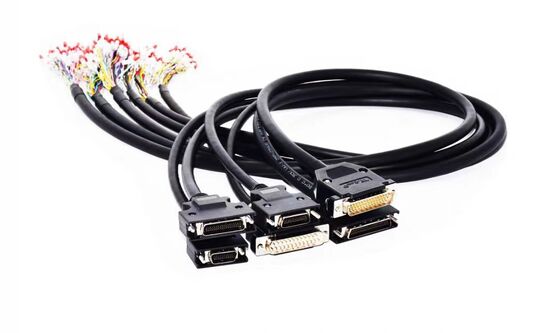

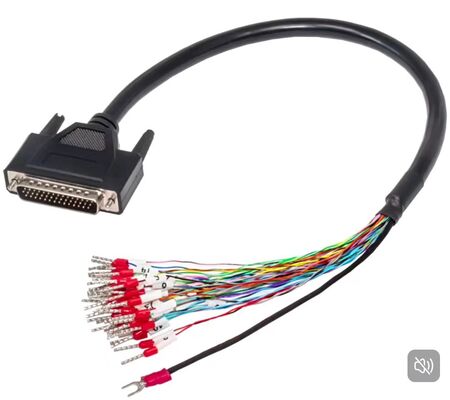

1000V Voltage Rating Servo Motor Connector with Multi-Pin Configuration for Industrial Automation

Product Description:

The Servo Motor Connectors are essential components designed specifically for use in industrial automation applications. These connectors provide reliable and efficient connectivity solutions for various types of servo motors, including Brushless Servo Motors and Hydraulic Brake Motors, ensuring optimal performance and durability in demanding environments. Engineered with precision, these connectors facilitate seamless communication and power transmission between control systems and servo motors, which is crucial for maintaining the accuracy and responsiveness required in modern automated machinery.

Constructed from high-quality metal and plastic materials, the Servo Motor Connectors are built to withstand the rigors of industrial settings. The metal components offer excellent conductivity and mechanical strength, while the plastic parts provide insulation and resistance to environmental factors such as dust, moisture, and mechanical wear. This combination of materials results in connectors that are not only robust but also lightweight, making installation and maintenance straightforward and hassle-free.

One of the standout features of these connectors is their wide operating temperature range, spanning from -40℃ to +105℃. This extensive temperature tolerance ensures that the connectors can function reliably in extreme conditions, whether in cold storage facilities or high-temperature manufacturing processes. Such resilience is vital for applications involving Brushless Servo Motors, which often operate under continuous load and require consistent electrical connection to perform efficiently.

The Servo Motor Connectors support a broad range of wire gauges, accommodating wires from 18 to 24 AWG and even larger diameters ranging from AWG 3 to 12. This flexibility makes them suitable for various power and signal transmission needs, allowing them to be used in different configurations and motor types, including Hydraulic Brake Motors. The ability to handle diverse wire sizes ensures compatibility with a wide array of servo motor setups, enhancing their versatility and utility in industrial automation systems.

In terms of electrical performance, these connectors boast a current rating that ranges from 1A to 10A and beyond, catering to the power requirements of different servo motor applications. Whether used with low-power Brushless Servo Motors or more demanding Hydraulic Brake Motors, these connectors can deliver stable and efficient current flow, minimizing power losses and reducing the risk of overheating or connector failure. This reliable current handling capacity is essential for maintaining the operational integrity and longevity of servo motor systems.

Furthermore, the design of the Servo Motor Connectors focuses on ease of use and secure connections. Their ergonomic design allows for quick and secure mating and unmating, which simplifies installation and maintenance tasks. This feature is particularly beneficial in industrial automation environments where downtime needs to be minimized, and quick servicing is often required to keep production lines running smoothly.

Overall, the Servo Motor Connectors are a vital component for anyone working with Brushless Servo Motors, Hydraulic Brake Motors, or other servo motor types in industrial automation. Their robust construction, wide operating temperature range, versatile wire gauge compatibility, and reliable current ratings make them an ideal choice for ensuring efficient and durable connections in a variety of industrial applications. By choosing these connectors, engineers and technicians can enhance the performance, safety, and reliability of their servo motor systems, ultimately contributing to more efficient and productive automated processes.

Features:

• Product Name: Servo Motor Connectors
• Application: Industrial Automation
• Voltage Rating: 1000V
• Connector Type: Servo Motor
• Wire Gauge: 18-24 AWG or more, AWG 3-12 diameter
• Gender Options: 8-pin, 4-pin, 6-pin, 12-pin, 17-pin
• Compatible with Electro Hydraulic Servo systems
• Ideal for use with Hydraulic Brake Motors
• Supports connections for AC Servo Motor Driver applications

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are specifically designed to meet the rigorous demands of industrial automation applications. These connectors provide reliable and secure connections essential for seamless communication between DC Servo Motor Drives and control systems. Featuring multiple configurations with 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin options, these connectors offer versatile solutions for various servo motor setups, including High Torque DC Servo Motor systems.

In industrial automation environments, the performance and durability of servo motor connectors are critical. The NO MARK 6FX2003, manufactured in China and certified under CE and ISO9001 standards, ensures high quality and compliance with international safety and performance requirements. The metal and plastic materials used in the connectors provide excellent mechanical strength and resistance to wear and environmental factors, making them ideal for continuous operation in harsh industrial settings.

These connectors support wire gauges ranging from 18-24 AWG and even larger diameters from AWG 3-12, accommodating a wide range of wiring needs in servo motor installations. The termination options of crimp or solder allow for flexible and secure connections tailored to specific system requirements. This flexibility makes the 6FX2003 suitable for connecting various DC Servo Motor Drive units, including high-performance High Torque DC Servo Motor applications where precision and reliability are paramount.

The product is packaged carefully in carton boxes to ensure safe delivery. With a supply ability of 1000 pieces per day and a minimum order quantity of 100 units, NO MARK guarantees quick turnaround times, typically within 1-3 working days. Payment terms such as T/T and PayPal facilitate smooth transactions, making it accessible for industrial clients worldwide.

Overall, the NO MARK 6FX2003 Servo Motor Connectors are ideal for any industrial automation scenario requiring dependable connection solutions for DC Servo Motor Drives. Whether used in robotics, CNC machinery, or automated production lines, these connectors ensure stable electrical connections that support the high precision and high torque demands of modern servo motor systems.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are manufactured in China under the brand NO MARK, ensuring high quality and reliability. Certified with CE and ISO9001, these connectors are designed to meet rigorous industry standards for Electro Hydraulic Servo, AC Brushless Servo Motor, and Hydraulic Brake Motors applications.

We offer product customization services tailored to your specific needs, including wire gauge options ranging from 18-24 AWG or more, and AWG 3-12 diameter. The connectors are made from durable metal and plastic materials, with contact plating options of silver or gold-plated pins to ensure excellent conductivity and corrosion resistance.

Our Servo Motor Connectors operate efficiently within a temperature range of -40℃ to +105℃, making them suitable for diverse operating environments. The connector type is specifically designed for servo motors, providing secure and reliable connections for your equipment.

We maintain a strong supply ability of 1000 pcs/day, with a minimum order quantity of 100 units. Packaging is done carefully in carton boxes to protect the products during shipment. Delivery time is fast, typically within 1-3 working days.

Flexible payment terms are available, including T/T and PayPal, to facilitate smooth transactions. Although the price is not available (NA) upfront, our team is ready to provide competitive quotations based on your order specifications.

Choose our customized Servo Motor Connectors to enhance the performance and reliability of your Electro Hydraulic Servo systems, AC Brushless Servo Motors, and Hydraulic Brake Motors with high-quality, certified components delivered promptly to your door.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications. To ensure optimal performance, please follow the installation guidelines carefully and verify compatibility with your servo motor specifications.

For troubleshooting, check all wiring connections for proper seating and continuity. Inspect connectors for any signs of damage or wear, and replace components as necessary to maintain signal integrity and prevent operational failures.

Regular maintenance is recommended to keep the connectors free from dust, debris, and corrosion. Use appropriate cleaning agents that do not damage the connector materials.

If you require technical assistance or need to access detailed product documentation, please refer to the user manual or our online resources for comprehensive support information.
